D Cable Lashing Clamp – 9123870200
D Cable Lashing Clamp – 9123870200
Used in aerial construction to secure terminating lashing wire or ground wire to a strand.
Tensile strength of the jaws exceeds 50,000 PSI.
Terminal ends of stud are staked to prevent disassembly during shipping and installation.
Attaches to strand ranging in size from 1/4″(6.35mm) to 7/16″(11.11mm).
The jaws are rolled and stamped from annealed 1018 Steel.
The stud of the D Cable Lashing Clamp is formed from Grade 5 Steel.
All components of D Cable Lashing Clamps are mechanically galvanized to meet ASTM Specification B695.

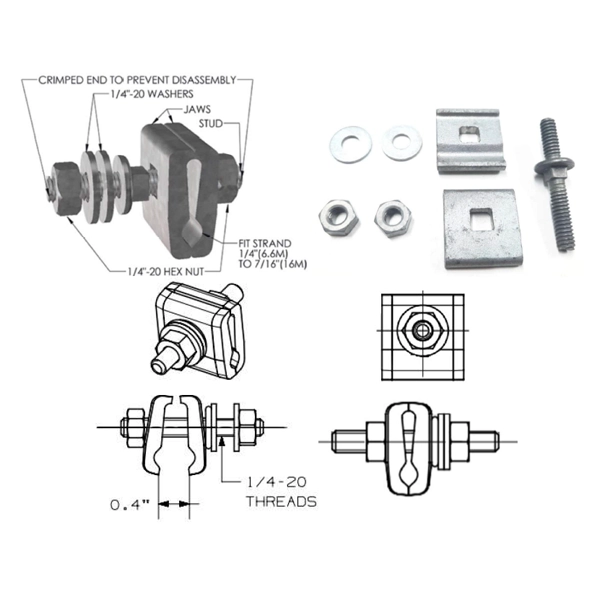

The Lashing Clamp is comprised of a stud, two washers, and two nuts along with a set of mechanically galvanized steel jaws.
Thread staked to prevent loss of nut.
No marking appears on the clamp.
