B Corner Suspension Clamp – 9123870650
B Corner Suspension Clamp – 9123870650
Used for attaching strand to corner poles.
Grooves fit 1/4″ to 7/16 strands.

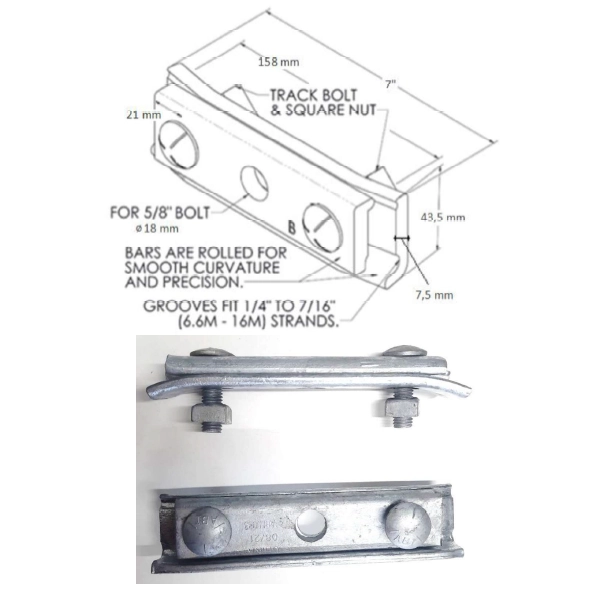

Clamp consists of two mating plates, two 5/8″-11 track bolts with attached square nuts.
Clamp plates are 42,9mm wide and 178mm (7″) long.
One plate is flared at each end to facilitate pulling strand through the clamp and has a substantial
projecting lip to retain the strand in the grooves.
The center hole with ø18mm on the Corner Suspension Clamp is for use with a 5/8 .
Production date “YY/WW” appears as marking on the section of the clamp. Bolts without marking.
Clamp with Hot dip galvanized steel Class B-3 to meet ASTM Specification A153.
Fasteners with Hot dip galvanized steel Class C to meet ASTM Specification A153.
