B Cable Suspension Clamp – 9123870600
B Cable Suspension Clamp – 9123870600
Used to attach strand to straight line poles.
Accepts 1/4″ (6.6M) to 7/16″ (16M) strand.

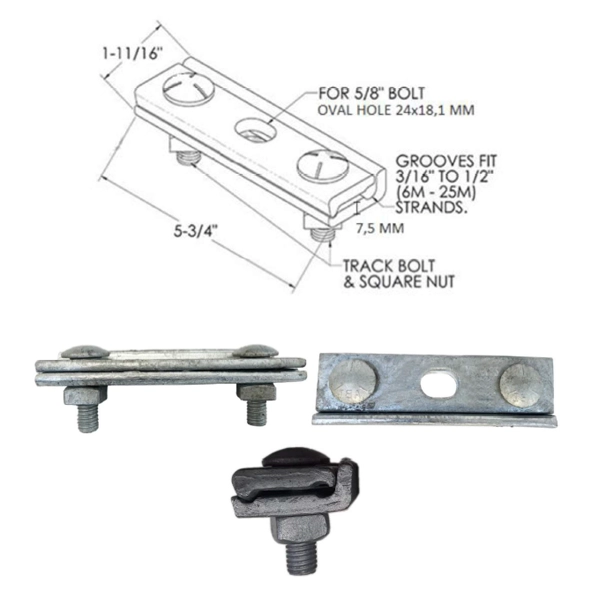

Consists of two plates, and two 1/2″-13 track bolts with attached square nuts.
Plates are 1-11/16″ wide and 5-3/4″ long.
Center oval hole 24×18,1mm accepts 5/8″ Thru Bolts.
Production date “YY/WW” appears as marking on the top section of the clamp. Bolts without marking.
Clamp with Hot dip galvanized steel Class B-3 to meet ASTM Specification A153.
Fasteners with Hot dip galvanized steel Class C to meet ASTM Specification A153.
